Edge Trim Rimless Floor

Edge Trim Rimless Floor


The frameless flooring with decorative edges is made of a single piece of all-steel substrate through stamping, eliminating the traditional exposed frame. This results in fine, neat seams, a smoother overall installation, and a visually simple and sophisticated appearance. The steel shell is filled with high-strength foamed cement, ensuring structural stability. The surface layer can be HPL anti-static laminate or ceramic, offering wear resistance, stain resistance, Mohs hardness compliance, and a Class A fire rating (non-combustible).

WhatsApp: +8615515788212

Email: sales@aobeitefloors.com

Product detail

Edge Trim Rimless Floor

Product Description

The frameless flooring with decorative edges is made of a single piece of all-steel substrate through stamping, eliminating the traditional exposed frame. This results in fine, neat seams, a smoother overall installation, and a visually simple and sophisticated appearance. The steel shell is filled with high-strength foamed cement, ensuring structural stability. The surface layer can be HPL anti-static laminate or ceramic, offering wear resistance, stain resistance, Mohs hardness compliance, and a Class A fire rating (non-combustible).

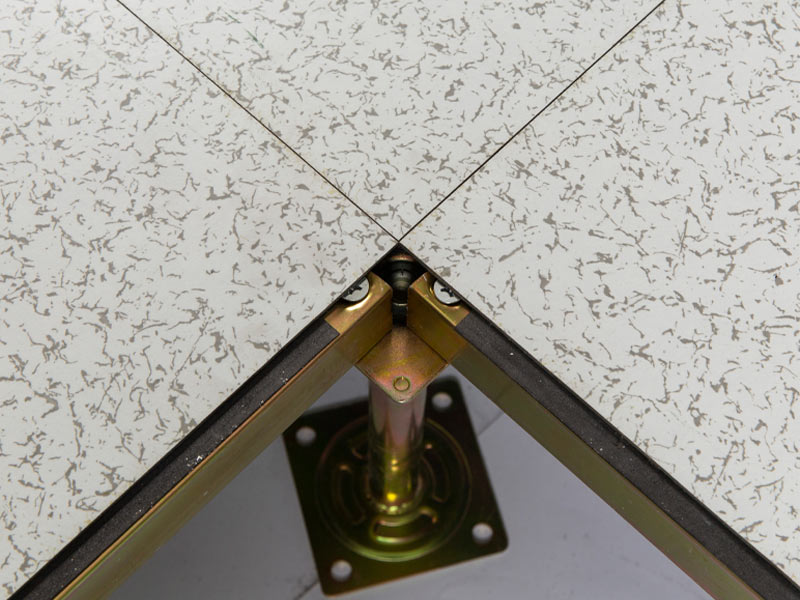

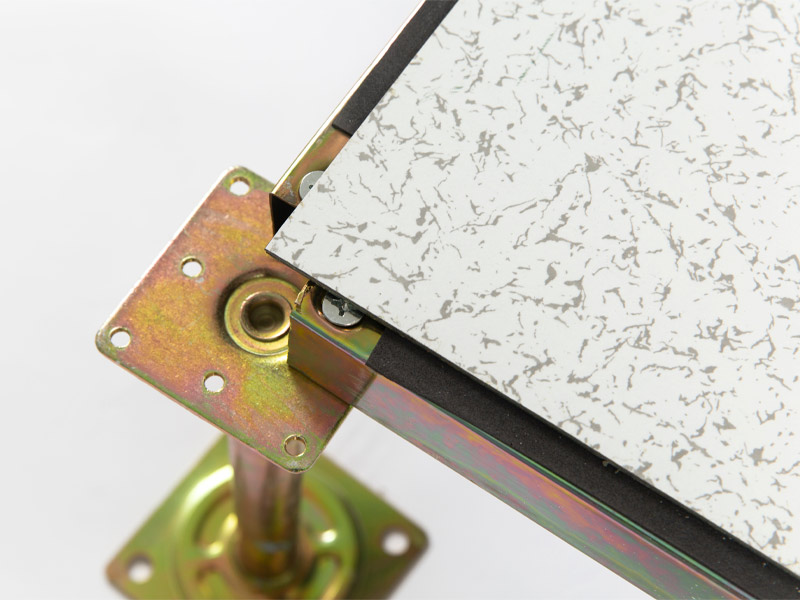

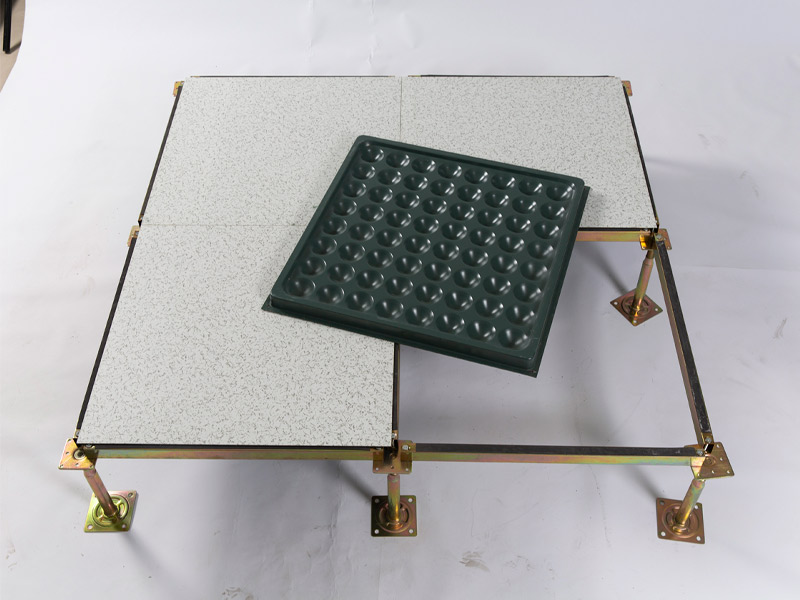

The product is equipped with a supporting bracket with crossbeams for elevated installation. The lower cavity houses power and data cables, providing anti-static, moisture-proof, and dust-proof protection. The frameless design minimizes seams, preventing dust and dirt accumulation. It is flexible to install and disassemble, offering excellent interchangeability. It meets the anti-static requirements of computer rooms while also fitting the aesthetic requirements of high-end office decor.

Application Scenarios

1. High-end intelligent office buildings and open-plan OA office areas, balancing concealed cabling with interior design aesthetics;

2. Government service halls, bank branches, and financial and tax office computer rooms, requiring both aesthetics and anti-static properties;

3. Small and medium-sized data centers and low-voltage control rooms, suitable for clean and tidy computer room construction;

4. Scientific research laboratories and testing control rooms, requiring dust and static electricity prevention and easy daily cleaning.

Main Specifications
Standard size 600×600mm
Floor thickness 40mm (standard) / 45mm (heavy-duty)
Elevation height 100–300mm (customizable)
System resistance 1×10⁶~1×10⁹Ω
electrostatic attenuation ≤2s (1000V→100V)
Uniformly distributed load ≥12500N/m²
Concentrated load ≥5560N (Standard) / ≥9000N (Heavy-duty)
Deflection ≤2.0mm
Mohs hardness ≥6 levels
Wear resistance rotation speed ≥2000 RPM
Fire resistance rating Class A (non-flammable)
steel plate thickness 0.8–1.2mm
Single piece weight Approximately 28–32 kg
